วาล์วควบคุมระดับน้ำด้วยลูกลอยแบบปรับระดับ จากเหล็กเหนียว รุ่น W-M110-10
รหัสสินค้าวาล์วควบคุมระดับน้ำด้วยลูกลอยแบบปรับระดับ จากเหล็กเหนียว รุ่น W-M110-10

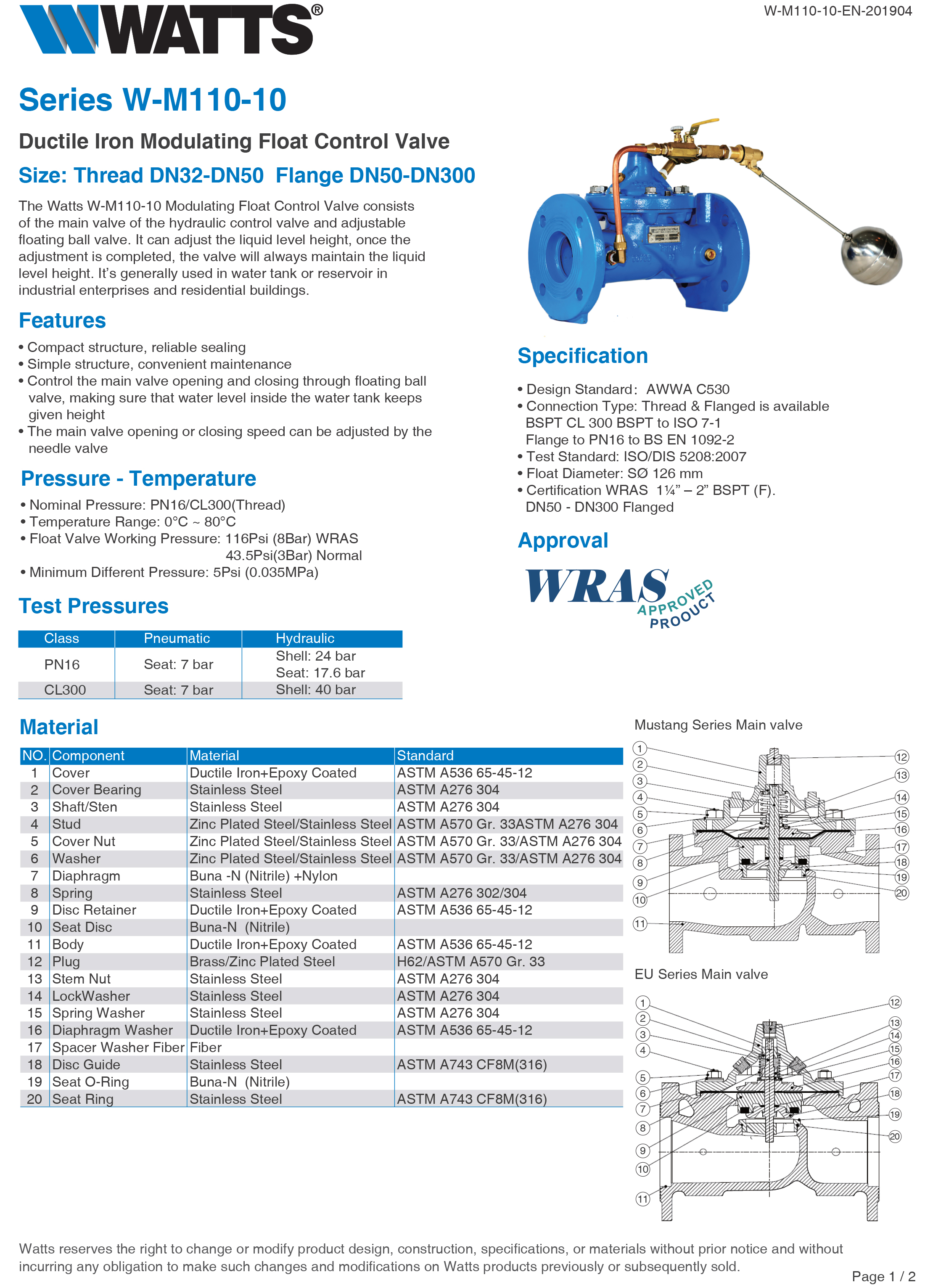

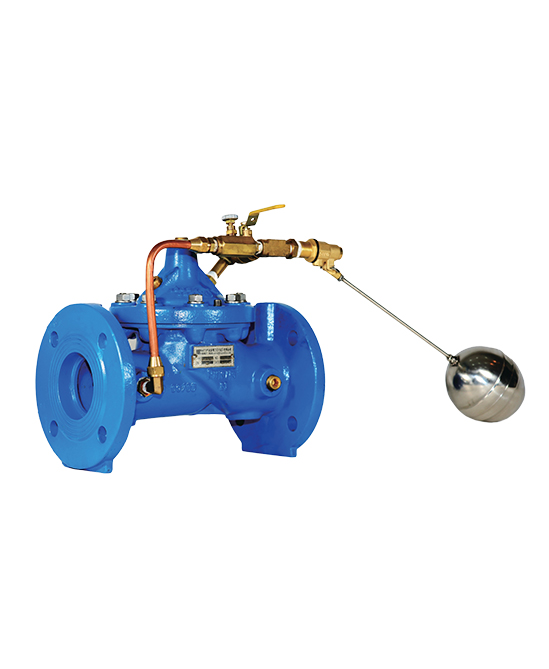

The Watts W-M110-10 Modulating Float Control Valve consists of the main valve of the hydraulic control valve and adjustable floating ball valve. It can adjust the liquid level height, once the adjustment is completed, the valve will always maintain the liquid level height. It’s generally used in water tank or reservoir in industrial enterprises and residential buildings.
Features
• Compact structure, reliable sealing
• Simple structure, convenient maintenance
• Control the main valve opening and closing through floating ball valve, making sure that water level inside the water tank keeps given height
• The main valve opening or closing speed can be adjusted by the needle valve
Specification
• Design Standard：AWWA C530
• Connection Type: Thread & Flanged is available BSPT CL 300 BSPT to ISO 7-1 Flange to PN16 to BS EN 1092-2
• Test Standard: ISO/DIS 5208:2007
• Float Diameter: SØ 126 mm.
• Certification WRAS 1¼” – 2” BSPT (F). DN50 - DN300 Flanged
