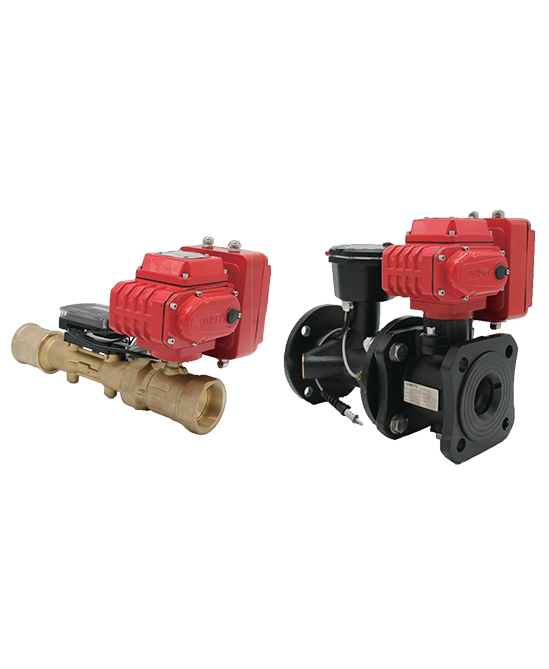

วาล์วควบคุมแบบอัจฉริยะ รุ่น W-SCBV-20T/W-SCBV-16Q/W-SCBV-16C
รหัสสินค้าวาล์วควบคุมแบบอัจฉริยะ รุ่น W-SCBV-20T/W-SCBV-16Q/W-SCBV-16C
Size : DN15-DN400

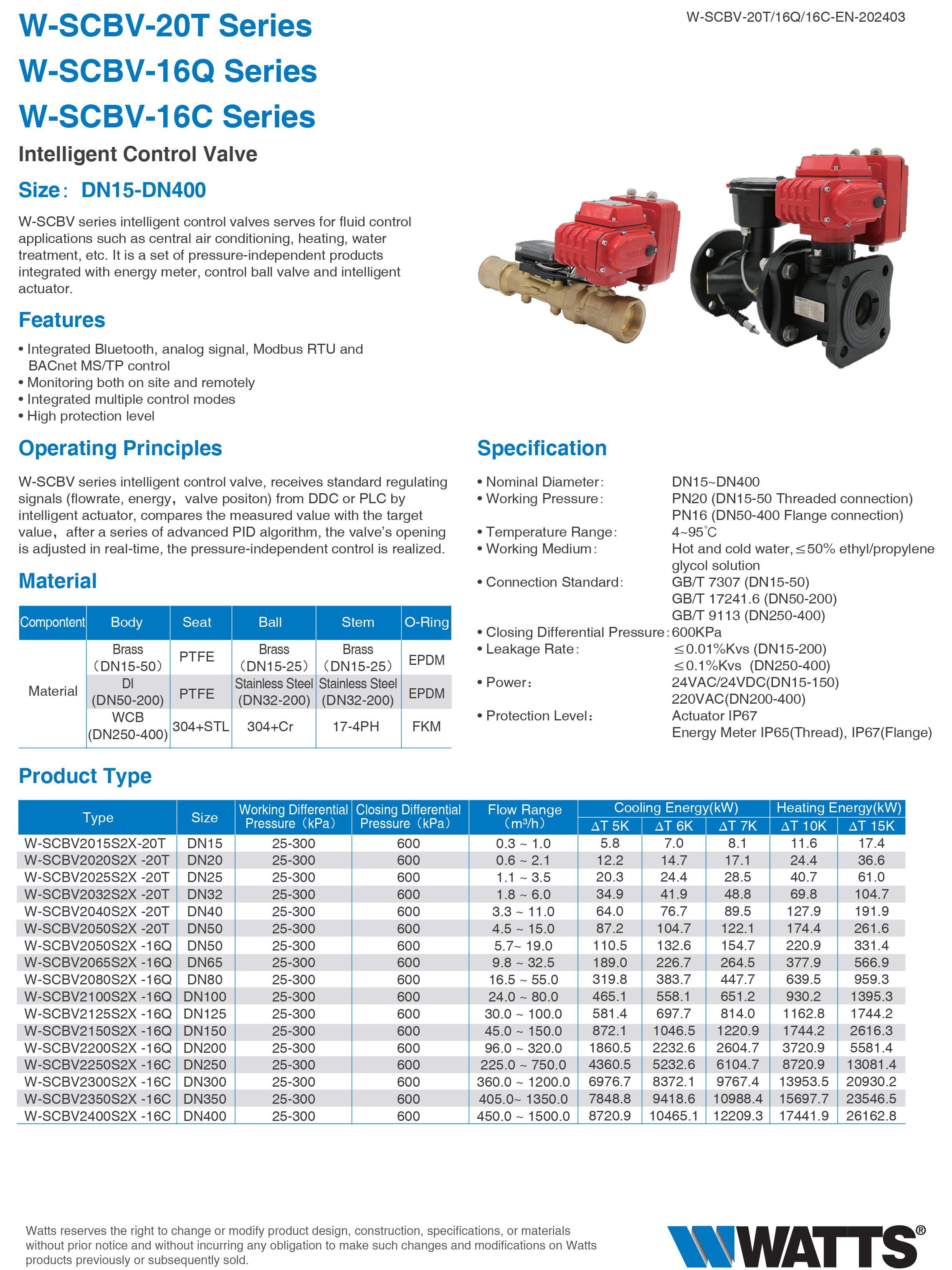

W-SCBV series intelligent control valves serves for fluid control applications such as central air conditioning, heating, water treatment, etc. It is a set of pressure-independent products integrated with energy meter, control ball valve and intelligent actuator.
Features
• Integrated Bluetooth, analog signal, Modbus RTU and BACnet MS/TP control
• Monitoring both on site and remotely
• Integrated multiple control modes
• High protection level
Specification
• Nominal Diameter : DN15~DN400
• Working Pressure : PN20 (DN15-50 Threaded connection) / PN16 (DN50-400 Flange connection)
• Temperature Range : 4~95°C
• Working Medium : Hot and cold water,≤50% ethyl/propylene glycol solution
• Connection Standard : GB/T 7307 (DN15-50) / GB/T 17241.6 (DN50-200) / GB/T 9113 (DN250-400)
• Closing Differential Pressure : 600KPa
• Leakage Rate : ≤0.01%Kvs (DN15-200) / ≤0.1%Kvs (DN250-400)
• Power : 24VAC/24VDC(DN15-150) / 220VAC(DN200-400)
• Protection Level : Actuator IP67 / Energy Meter IP65(Thread), IP67(Flange)
