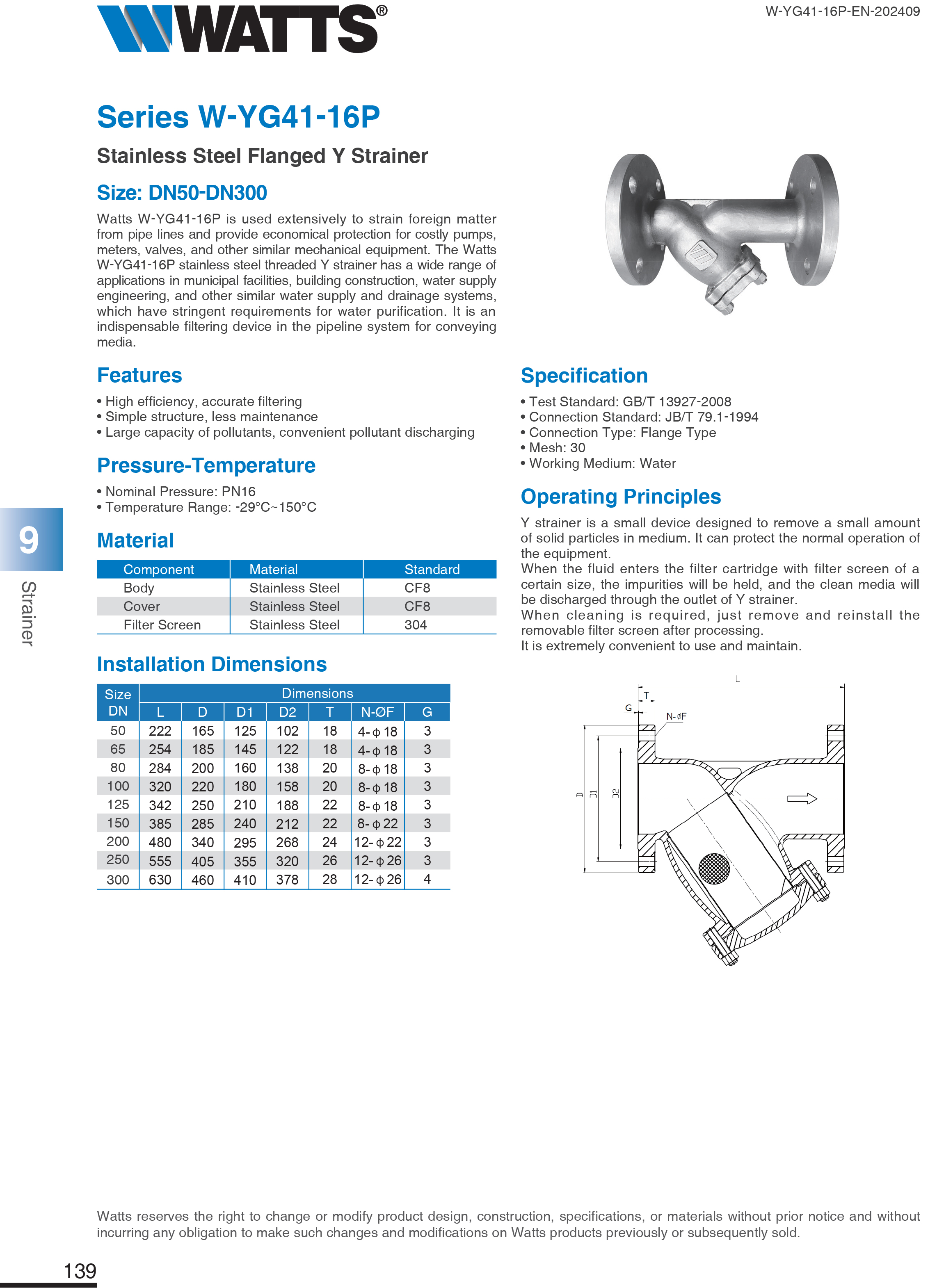

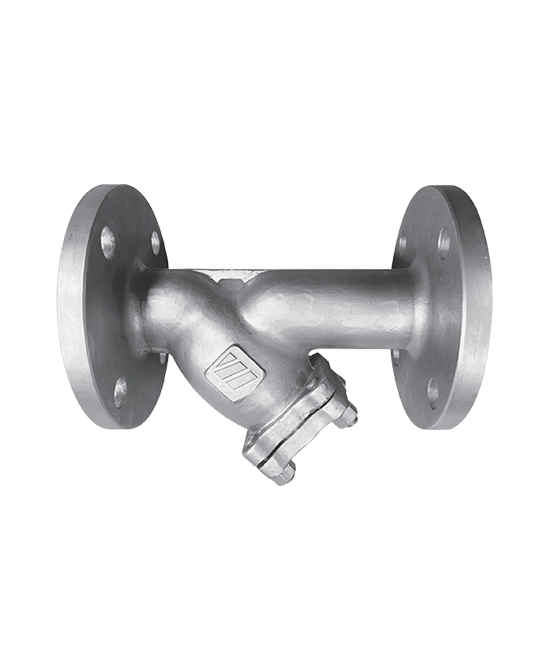

ตะแกรงกรองทรงตัว Y หน้าแปลน สแตนเลส รุ่น W-YG41-16P
รหัสสินค้าตะแกรงกรองทรงตัว Y หน้าแปลน สแตนเลส รุ่น W-YG41-16P
Size : DN50-DN300
Watts W-YG41-16P is used extensively to strain foreign matter from pipe lines and provide economical protection for costly pumps, meters, valves, and other similar mechanical equipment. The Watts W-YG41-16P stainless steel threaded Y strainer has a wide range of applications in municipal facilities, building construction, water supply engineering, and other similar water supply and drainage systems, which have stringent requirements for water purification. It is an indispensable filtering device in the pipeline system for conveying media.
Features
• High efficiency, accurate filtering
• Simple structure, less maintenance
• Large capacity of pollutants, convenient pollutant discharging
Pressure-Temperature
• Nominal Pressure: PN16
• Temperature Range: -29°C~150°C
Specification
• Test Standard: GB/T 13927-2008
• Connection Standard: JB/T 79.1-1994
• Connection Type: Flange Type
• Mesh: 30
• Working Medium: Water
