- Super Large Stroke Length on a par with hydraulic press can be stop and return at any position to meet several technology.
- Super Large Work Table double points or four points with strong resist unbalance loading strength, which is optimal for large mould and progressive moulds.
- Super Forming Precision dynamic intelligent compensation of bottom dead center accuracy, repositioning precision work area ±0.01 mm, ensure high precision of stamping products, and long service of mould life.
- Super High Work Efficiency compared with traditional mechanical press, with less mechanical parts, ensure high work efficiency, easily for maintaining, convenient for connecting with auto transfer line.
- Super of Saving Energy Patent drive mechanism with super power, equip with low power servo motor, through high efficient energy transformation realize 5–10 multiplication high-power output, low energy consumption and high performance / price ratio.

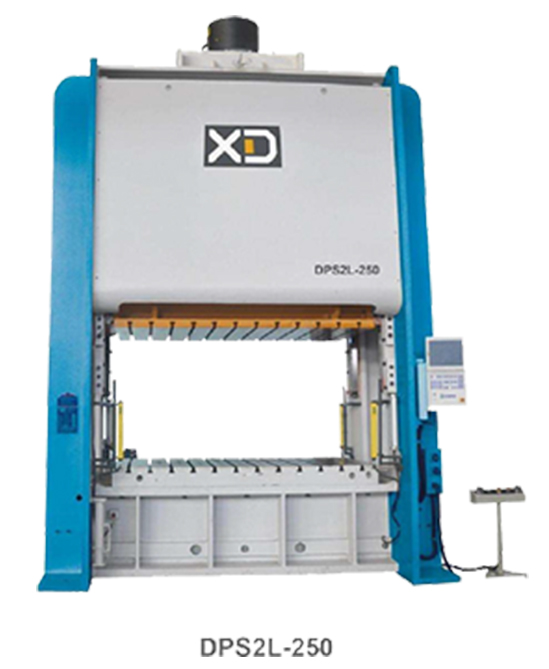

| 项目名称 Item | 单位 Unit | DPS2L-250 | DPS2L-400 | DPS2L-630 | DPS2L-800 | DPS2L-1000 |
|---|---|---|---|---|---|---|
| 公称力 Nominal Pressure | kN | 2500 | 4000 | 6300 | 8000 | 10000 |
| 公称力行程 Nominal Pressure Stroke | mm | 13 (按工艺曲线 Adjustable According to Technical Curve) | 13 (按工艺曲线 Adjustable According to Technical Curve) | 13 (按工艺曲线 Adjustable According to Technical Curve) | 13 (按工艺曲线 Adjustable According to Technical Curve) | 13 (按工艺曲线 Adjustable According to Technical Curve) |
| 滑块行程 Slide Stroke Length | mm | 50–600 (按曲线调整 Adjustable According to Technical Curve) | 50–600 (按曲线调整 Adjustable According to Technical Curve) | 50–800 (按曲线调整 Adjustable According to Technical Curve) | 50–800 (按曲线调整 Adjustable According to Technical Curve) | 50–800 (按曲线调整 Adjustable According to Technical Curve) |
| 最大装模高度 Max. Die Height | mm | 600 | 600 | 1200 | 1200 | 1200 |
| 装模高度调节量 Die Height Adjustment | mm | 200 | 200 | 500 | 500 | 500 |
| 滑块行程次数 No. of Strokes Per Minute | SPM | 可自由设定工作模式 Set Work Mode Freely (15/800, 20/600, 30/400) |
可自由设定工作模式 Set Work Mode Freely (15/800, 20/600, 30/400) |
可自由设定工作模式 Set Work Mode Freely (15/800, 20/600, 30/400) |
可自由设定工作模式 Set Work Mode Freely (15/800, 20/600, 30/400) |
可自由设定工作模式 Set Work Mode Freely (15/800, 20/600, 30/400) |
| 工作台尺寸 (前后×左右) Bolster Surface Size (FB×LR) | mm | 1400×2500 | 1400×2800 | 1600×4200 | 1600×4200 | 1600×4200 |
| 滑块底面尺寸 (前后×左右) Slider Bottom Surface Size (FB×LR) | mm | 1400×2500 | 1400×2800 | 1600×4200 | 1600×4200 | 1600×4200 |
| 主电机功率 Main Motor Power | kW | 238 | 238×2 | 238×3 | 238×4 | 238×5 |
| 外形尺寸 Overall Dimension 前后 F.B. |
mm | 2200 | 2400 | 3200 | 3200 | 3200 |
| 左右 L.R. | mm | 3770 | 4300 | 6500 | 6500 | 6500 |
| 高度 Height | mm | 5700 | 6100 | 8300 | 8500 | 8800 |
| 重量 (约) Gross Weight | kg | 43500 | 61000 | 160000 | 200000 | 250000 |
