Specification 主要技术参数

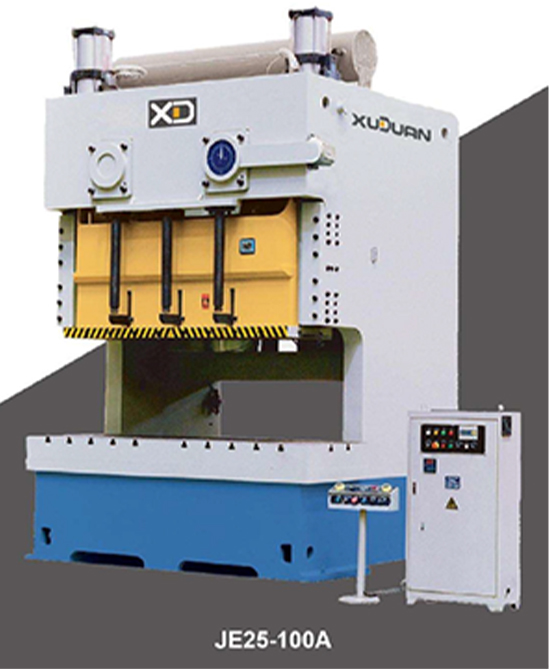

JE25 series C type two points high performance press with large worktable is suitable for large metal sheet punching and processing-die automatic production.

  • With double crankshafts, welded frame and square guide ways, the machine has the ability of anti-eccentrical load and high precision, which assures high efficiency and high quality production.
  • The press adopts hydraulic overload protector and PLC controller.
  • Feeding shaft, automatic die height adjustment system, air cushion, variable speed device can be supplied according to customer's requirements.
项目名称 Item 单位 Unit JE25-100A JE25-160A JE25-200A JE25-250A JE25-315A
公称力 Nominal Pressure kN 1000 1600 2000 2500 3150
公称力行程 Nominal Pressure Stroke mm 5 6 6 7 8
滑块行程 Slide Stroke Length mm 140 160 200 250 280
行程次数 No. of Strokes Per Minute SPM 35–65 30–60 30–50 25–40 20–35
最大装模高度 Max. Die Height mm 400 450 500 550 550
装模高度调节量 Die Height Adjustment mm 90 100 110 110 110
板口深度 Throat Depth mm 350 390 430 470 480
工作台尺寸 (前后×左右) Bolster Surface Size (FB×LR) mm 680×1830 760×2040 840×2420 920×2700 940×2800
滑块底面尺寸 (前后×左右) Slider Bottom Surface Size (FB×LR) mm 520×1450 580×1600 650×1850 650×2160 700×2200
主电机功率 Main Motor Power kW 11 18.5 22 30 37
外形尺寸 Overall Dimension
前后 F.B.		 mm 1870 2110 2200 2520 2800
左右 L.R. mm 1980 2350 2420 2750 2830
高度 Height mm 3275 3680 3945 4242 4365
重量 (约) Gross Weight kg 16500 21000 31100 40500 46000
