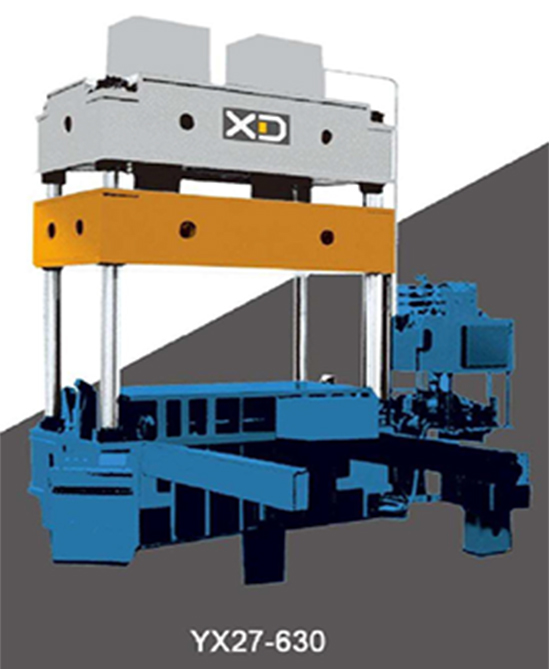

YX27-630

รหัสสินค้า

YX27-630

หมวดหมู่ : งานขาย Machine "XUDUAN"

คำค้นหา

จำนวนผู้เข้าชมสินค้า 65 คน

Specification 主要技术参数

Computer optimized design, three beam and four column structure, simple structure, economical and practical.
Two-way cartridge valve integrated control, leakproof ring flange pipe system, reduce the leakage point.
PLC electrical control system, sensitive and reliable with adjustment; manual, semiautomatic three functions, and fixed distance and constant pressure control modes.
Hydraulic cushion can realize jacking, don't hold up, and stretching three action process.

Normal configuration, open loop control; Pressure gauge shows pressure, travel switch controlling displacement.

Movable bolster, buffer devices, photoelectric protection, and knock device (mechanical, hydraulic) and high-speed die changing system and mould clamping mechanism, etc. are optional.

项目名称 Item	单位 Unit	YX27-315	YX27-400	YX27-500	YX27-630	YX27-800	YX27-1000	YX27-1250	YX27-1600	YX27-2000	YX27-2500	YX27-3000	YX27-4000
公称力 Nominal Pressure	kN	3150	4000	5000	6300	8000	10000	12500	16000	20000	25000	30000	40000
台面尺寸 (左右×前后) Bolster Dimension (L×F)	mm	1300×1200	1500×1400	2000×1600	2000×1800	2300×1700	2500×1800	2600×2000	3000×2000	3500×2000	4000×2000	4200×2000	4500×2000
液压垫面积 Hydraulic Cushion Area (L×F)	mm	800×650	950×800	950×850	1000×900	1200×1000	1300×1100	1300×1100	1400×1200	1500×1300	1600×1300	1700×1300	1850×1500
最大开口高度 Max. Open Height	mm	1250	1300	1500	1500	1800	1800	1800	1900	2000	2000	2000	2000
液压垫行程 Hydraulic Cushion Stroke	mm	300	400	500	500	500	550	550	600	650	700	800	800
液压垫压力 Hydraulic Cushion Force	kN	1000	1500	2000	2500	3000	3150	4000	5000	6000	8000	8000	8000
滑块行程 Stroke	mm	1000	1100	1200	1300	1300	1300	1300	1400	1400	1600	2000	2000
主电机功率 Main Motor Power	kW	18.5	22	37	45	67	90	111	148	185	222	222	295
移动台承载力 Movable Platform Load Capacity	T	—	—	25	25	25	25	25	50	50	50	100	100
