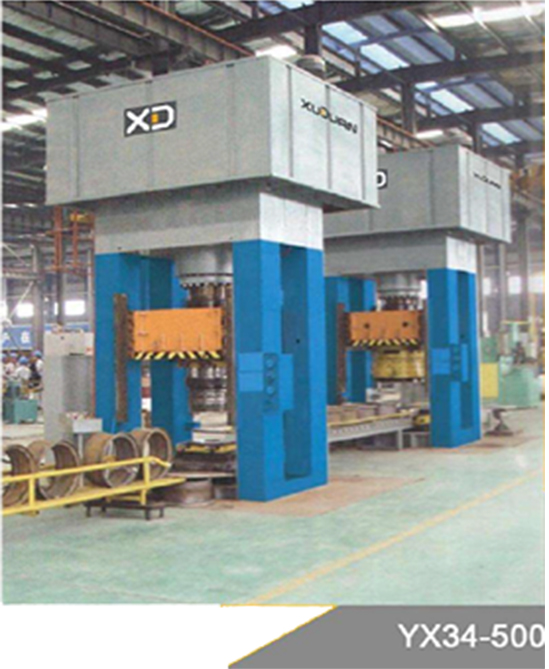

YX34-500

รหัสสินค้า

YX34-500

หมวดหมู่ : งานขาย Machine "XUDUAN"
คำค้นหา
จำนวนผู้เข้าชมสินค้า 83 คน

Features :

  • Computer optimizing design, pre-stress composite frame structure, high rigidity and strength. Slide ram with four corners of eight side guide rails, high precision of adjustment, good stability and partial load resistance is strong.
  • Two-way cartridge valve integrated control, leak proof ring flange pipe system, reduce the leakage point.
  • PLC electrical control system, the action is sensitive and reliable with adjustment, manual, semiautomatic three functions, and fixed distance and constant pressure control mode.
  • Ejection cylinder can realize jacking, don’t hold up, and stretching three process actions, as upgrade alternative for four-column hydraulic press.

Application :

Precision parts drawing, bending, forming, blanking, flanging, cold and hot extrusion process.

Components Optional :

  • Normal configuration, open loop control; Pressure gauge shows pressure, travel switch controlling displacement.
  • Numerical control system: PLC electrical control system, the closed loop control, pressure transducer, pressure proportional pressure valve control, displacement sensor control, parameters of touch screen display, pressure setting, displacement technology process can be set according to the requirements of customers.
  • Servo control system, servo motors, drives, encoder, duplex quantitative pump combination instead of asynchronous motor, constant power combination and proportion pressure valve. The closed loop control through pressure setting motor speed, through the encoder, displacement sensor control, realize to control of hydraulic pressure, displacement velocity and other parameters more precise control.
  • Man-machine dialogue, highly flexible work on the working process, and the various parameters (pressure, displacement, speed, etc.) on-demand of programming control.

Has the Following Advantages :

  • Save energy of 20–50%.
  • Avoid no-load noise and reduce the load fluctuation noise, average noise reduction 20 decibels, to promote environmental protection.
  • Energy saving features of servo system reduces the oil heating, reduce the oil viscosity, and sealing components aging due to high oil temperature, and reduce oil leakage phenomenon.
  • Higher control precision, quick response and displacement control more precise, especially suitable for high requirements for hydraulic press repeat positioning and synchronization accuracy requirement of high technology.

Optional Accessories :

Movable worktable, the buffer device, photoelectric protection, knocking device (mechanical, hydraulic), high speed moulds changing system, clamping mechanism, and moulds replacement loader.

Specification 主要技术参数

项目名称 Item 单位 Unit YX34-100 YX34-200 YX34-315 YX34-400 YX34-500 YX34-630 YX34-800 YX34-1000 YX34-1250 YX34-1600 YX34-2000 YX34-2500
公称力 Nominal Pressure kN 1000 2000 3150 4000 5000 6300 8000 10000 12500 16000 20000 25000
公称力行程 Nominal Pressure Stroke mm 90 120 130 150 150 150 180 200 200 200 200 200
滑块行程 Slide Stroke Length mm 250 280 320 400 400 400 420 500 540 580 630 680
行程次数 No. of Strokes Per Minute SPM 15–37 12–35 10–30 10–25 10–25 10–25 8–20 8–20 8–20 8–20 8–20 8–20
最大装模高度 Max. Die Height mm 900 1000 1100 1200 1200 1200 1250 1300 1400 1400 1400 1400
装模高度调节量 Die Height Adjustment mm 100 100 120 150 150 150 150 160 160 160 160 160
工作台尺寸(前后×左右) Bolster Surface Size (FB×LR) mm 720×580 900×710 1200×1000 1400×1200 1600×1400 2000×1600 2200×1800 2600×2000 3000×2200 3000×2200 3000×2200 3000×2200
